Webhooks

Webhooks provides a way for notifications to be delivered to your server in real time whenever an event occurs on RedCarbon.

Setting up a Webhook

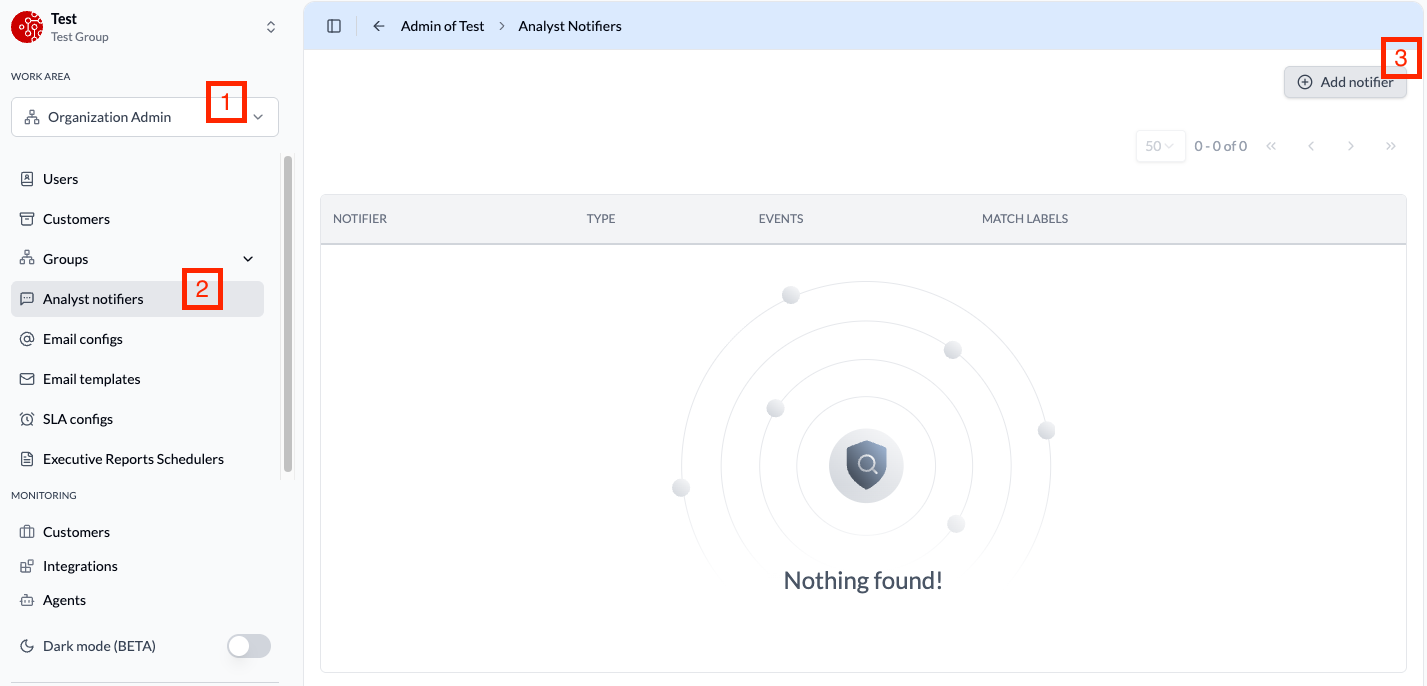

To create a webhook, you must have the Organization Admin role. Follow these steps:

1. Navigate to Organization Admin > Analyst Notifiers.
2. Click Add Notifiers and select Webhook.
3. Configure the webhook URL

Filtering with Match Labels

Once a webhook is created, you can configure match labels to filter which events are delivered. For example, you can use match labels to receive events only for a specific customer, allowing you to route different customers' events to different endpoints.

Event Structure

Every webhook delivery contains an event envelope with the following structure:

{
  "eventId": "evt_2fGh7kL9mNpQ",
  "type": "ticket.created",
  "customerId": "cust_8xR3vB5nW",
  "timestamp": "2024-03-15T14:22:00Z",
  {{event}}: { ... }
}

Field	Type	Description
eventId	string	Unique identifier for the event
type	string	The event type (see Event Types below)
customerId	string	The customer associated with the event
timestamp	string	ISO 8601 timestamp of when the event occurred
{{event}}	object	Can be either ticketEvent (see Case Events) or iocEvent (see IOC Events)

Only one of ticketEvent or iocEvent will be present in each event, depending on the event type.

Event Types

Case Events

Event Type	Description
ticket.created	A new case has been created
ticket.updated	A case has been updated (status, severity, tier, category, classification, spent time)
ticket.assigned	A case has been assigned to an analyst
ticket.unassigned	A case has been unassigned from an analyst
ticket.closed	A case has been closed
ticket.reopened	A previously closed case has been reopened
ticket.escalated	A case has been escalated
ticket.notify	A notification has been sent for a case
ticket.parent.set	A parent case has been linked
ticket.parent.unset	A parent case has been unlinked
ticket.note.created	A note has been added to a case
ticket.report.change	A case report has been created or updated
ticket.comment.created	A comment has been added to a case

For detailed payload structures and examples, see Case Events.

IOC Events

Event Type	Description
ioc.created	A new Indicator of Compromise has been created

For detailed payload structures and examples, see IOC Events.

Validating webhook deliveries

When you create a webhook channel, RedCarbon provides a secret token (a base64-encoded string, ~86 characters). This token is shown only once — if you lose it, you must delete the channel and create a new one. Store it as a secret environment variable.

RedCarbon signs every outgoing webhook with HMAC-SHA256. Each request includes a RedCarbon-Signature header:

RedCarbon-Signature: t=1708262400000, v1=3d9f2ca4e1b7...a8b1

Field	Description
t	Unix timestamp of the event in milliseconds
v1	Lowercase hex-encoded HMAC-SHA256 signature

To verify a request:

1. Extract t and v1 from the RedCarbon-Signature header.
2. Read the raw request body before any JSON parsing — parsing and re-serializing can change bytes and invalidate the signature.
3. Build the signed string: "{t}.{raw_body}".
4. Compute HMAC-SHA256(secret_token, signed_string) and hex-encode it.
5. Compare the result with v1 using a constant-time equality check to prevent timing attacks.
6. Reject requests where |now − t| > 5 minutes to prevent replay attacks.
